Mongo DB

Database Schema Documentation

This document provides a comprehensive overview of the MongoDB database schema used in the Vibra application. The schema is organized by domain categories, with detailed descriptions of each collection, its fields, data types, and relationships with other collections.

Table of Contents

• User Management
• Activities and Learning
• Notifications
• Permissions and Access Control
• Organizations
• System Configuration
• Audit and Reporting
• File Storage

Preview

User Management

Users

The Users collection stores information about system users, including personal details, authentication information, and system access settings.

Field	Type	Description
_id	ObjectId	Primary key
name	String	User's full name
documentType	ObjectId	Reference to document type
documentNumber	String	User's identification number
address	String	User's physical address
phoneNumber	String	User's contact number
email	String	User's email address
username	String	User's login username
password	String	Encrypted password
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
editedAt	DateTime	Last edit timestamp
editedBy	String	Last editor reference
deleted	Boolean	Soft deletion flag
deletedAt	DateTime	Deletion timestamp
isActive	Boolean	Account status
role	ObjectId	Reference to Roles collection
company	ObjectId	Reference to Companies collection
gender	String	User's gender
isLogged	Boolean	Current login status
avatar	String	Profile image reference
birthDate	DateTime	User's date of birth
updatedAt	DateTime	Last update timestamp
__v	Int	Version number

Relationships:

• Users → Roles (Many-to-One): Each user has one role
• Users → Companies (Many-to-One): Each user belongs to one company

UserPolicies

Tracks user acceptance of system policies and terms.

Field	Type	Description
_id	ObjectId	Primary key
userId	ObjectId	Reference to Users collection
policyId	ObjectId	Reference to Policies collection
userPolicyKey	String	Unique identifier for user-policy pair
version	String	Policy version accepted
isAccepted	Boolean	Acceptance status
ipAddress	String	IP address during acceptance
userAgent	String	Browser/device information
acceptedAt	DateTime	Acceptance timestamp
createdAt	DateTime	Creation timestamp
updatedAt	DateTime	Last update timestamp
__v	Int	Version number

Relationships:

• UserPolicies → Users (Many-to-One): Each policy acceptance belongs to one user
• UserPolicies → Policies (Many-to-One): Each policy acceptance refers to one policy

Roles

Defines user roles and their administrative capabilities.

Field	Type	Description
_id	ObjectId	Primary key
serial	String	Unique identifier
name	String	Role name
description	String	Role description
isSuperAdmin	Boolean	Super admin privileges flag
isActive	Boolean	Role status
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
__v	Int	Version number
deleted	Boolean	Soft deletion flag
deletedAt	DateTime	Deletion timestamp
editedAt	DateTime	Last edit timestamp
permissionTemplate	String	Template for role permissions

Relationships:

• Roles → Users (One-to-Many): Each role can be assigned to multiple users

Activities and Learning

Activities

Stores educational activities and their associated resources and questions.

Field	Type	Description
_id	ObjectId	Primary key
id	String	Activity identifier
emotions	String	Associated emotions
title	String	Activity title
resources	Resources[]	Array of learning resources
questions	Questions[]	Array of assessment questions
difficulty	Int	Difficulty level
isActive	Boolean	Activity status
schedule	Schedule	Scheduling information
createdAt	DateTime	Creation timestamp

Relationships:

• Activities → Emotions (Many-to-One): Activities are associated with emotions
• Activities → UserResponses (One-to-Many): Each activity can have multiple user responses

Resources

Embedded document within Activities that defines learning materials.

Field	Type	Description
type	String	Resource type (video, article, etc.)
url	String	Resource location
duration	Int	Length in seconds/minutes
metadata	Metadatas	Additional resource information

Metadatas

Embedded document within Resources that provides additional context.

Field	Type	Description
author	String	Content creator
language	String	Content language

Questions

Embedded document within Activities that defines assessment questions.

Field	Type	Description
id	String	Question identifier
questionText	String	The question itself
type	String	Question type (multiple choice, etc.)
options	String[]	Possible answers
correctAnswer	String	The correct answer
points	Int	Point value

Schedule

Embedded document within Activities that defines when activities should be available.

Field	Type	Description
date	DateTime	Scheduled date
weekNumber	Int	Week number
year	Int	Year

Emotions

Defines emotional categories used in activities.

Field	Type	Description
_id	ObjectId	Primary key
id	String	Emotion identifier
name	String	Emotion name
orientationNote	String	Guidance note
description	String	Detailed description
icono	String	Icon reference
percentNote	Int	Percentage indicator

Relationships:

• Emotions → Activities (One-to-Many): Each emotion can be associated with multiple activities

UserResponses

Stores user answers to activity questions and performance metrics.

Field	Type	Description
_id	ObjectId	Primary key
user	String	Reference to user
activity	String	Reference to activity
responses	UserResponse[]	Array of individual responses
score	Int	Total score achieved
startTime	DateTime	When user started the activity
endTime	DateTime	When user completed the activity
timeSpent	Int	Duration in seconds
createdAt	DateTime	Creation timestamp
updatedAt	DateTime	Last update timestamp
__v	Int	Version number

Relationships:

• UserResponses → Users (Many-to-One): Each response set belongs to one user
• UserResponses → Activities (Many-to-One): Each response set is for one activity

UserResponse

Embedded document within UserResponses that stores individual question responses.

Field	Type	Description
_id	ObjectId	Primary key
questionId	String	Reference to question
answer	String	User's answer
isCorrect	Boolean	Correctness flag
responseTime	Int	Time taken to answer

Pretest

Stores preliminary assessment results.

Field	Type	Description
_id	ObjectId	Primary key
testId	String	Test identifier
userId	String	User reference
responses	PretestResponse[]	Array of responses
__v	Int	Version number

Relationships:

• Pretest → Users (Many-to-One): Each pretest belongs to one user

PretestResponse

Embedded document within Pretest that stores individual question responses.

Field	Type	Description
questionId	String	Reference to question
answer	String	User's answer

Notifications

Notifications

Stores system notifications sent to users.

Field	Type	Description
_id	ObjectId	Primary key
ID	String	Notification identifier
title	String	Notification title
message	String	Notification content
isRead	Boolean	Read status
client	String	Target client
notificationType	String	Reference to notification type
notificationChannel	String	Reference to notification channel
priority	Int	Importance level
serial	String	Unique identifier
isActive	Boolean	Active status
deleted	Boolean	Soft deletion flag
deletedAt	DateTime	Deletion timestamp
createdAt	DateTime	Creation timestamp
__v	Int	Version number

Relationships:

• Notifications → NotificationTypes (Many-to-One): Each notification has one type
• Notifications → NotificationChannels (Many-to-One): Each notification uses one channel

NotificationTypes

Defines categories of notifications.

Field	Type	Description
_id	ObjectId	Primary key
title	String	Type name
description	String	Type description
level	Int	Importance level

Relationships:

• NotificationTypes → Notifications (One-to-Many): Each type can be used by multiple notifications

NotificationChannels

Defines delivery methods for notifications.

Field	Type	Description
_id	ObjectId	Primary key
title	String	Channel name
description	String	Channel description
level	Int	Priority level

Relationships:

• NotificationChannels → Notifications (One-to-Many): Each channel can be used by multiple notifications

Permissions and Access Control

Permissions

Defines system permissions that can be assigned to users.

Field	Type	Description
_id	ObjectId	Primary key
serial	String	Unique identifier
name	String	Permission name
description	String	Permission description
permissionCategory	String	Reference to category
isActive	Boolean	Permission status
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
__v	Int	Version number
deleted	Boolean	Soft deletion flag
deletedAt	DateTime	Deletion timestamp
deletedBy	String	Deleter reference

Relationships:

• Permissions → PermissionCategories (Many-to-One): Each permission belongs to one category
• Permissions → UserPermissions (One-to-Many): Each permission can be assigned to multiple users

PermissionCategories

Groups permissions into logical categories.

Field	Type	Description
_id	ObjectId	Primary key
serial	String	Unique identifier
name	String	Category name
description	String	Category description
isActive	Boolean	Category status
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
__v	Int	Version number

Relationships:

• PermissionCategories → Permissions (One-to-Many): Each category can contain multiple permissions

UserPermissions

Links users to their assigned permissions.

Field	Type	Description
_id	ObjectId	Primary key
user	String	Reference to user
permission	String	Reference to permission
serial	String	Unique identifier
isActive	Boolean	Assignment status
deleted	Boolean	Soft deletion flag
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
deletedAt	DateTime	Deletion timestamp
__v	Int	Version number
deletedBy	String	Deleter reference

Relationships:

• UserPermissions → Users (Many-to-One): Each permission assignment belongs to one user
• UserPermissions → Permissions (Many-to-One): Each permission assignment refers to one permission

Policies

Stores system policies and terms that users must accept.

Field	Type	Description
_id	ObjectId	Primary key
title	String	Policy title
content	String	Policy text
version	String	Policy version
isActive	Boolean	Policy status
type	String	Policy type
effectiveDate	DateTime	When policy takes effect
createdAt	DateTime	Creation timestamp
updatedAt	DateTime	Last update timestamp

Relationships:

• Policies → UserPolicies (One-to-Many): Each policy can have multiple user acceptances

Organizations

Companies

Stores information about organizations using the system.

Field	Type	Description
_id	ObjectId	Primary key
name	String	Company name
nit	String	Tax identification number
address	String	Physical address
email	String	Contact email
phoneNumber	Long	Contact number
managerData	ManagerData	Manager information
createdAt	DateTime	Creation timestamp
deleted	Boolean	Soft deletion flag
deletedAt	DateTime	Deletion timestamp
isActive	Boolean	Company status
slogan	String	Company motto
userAdmin	String	Admin user reference
editedAt	DateTime	Last edit timestamp
isMain	Boolean	Primary company flag

Relationships:

• Companies → Users (One-to-Many): Each company can have multiple users
• Companies → ManagerData (One-to-One): Each company has one manager data record

ManagerData

Embedded document within Companies that stores manager information.

Field	Type	Description
name	String	Manager name
documentType	String	ID type
document	String	ID number
email	String	Contact email
phoneNumber	String	Contact number

HightSchools

Stores information about educational institutions.

Field	Type	Description
_id	ObjectId	Primary key
id	String	School identifier
name	String	School name
address	String	Physical address
nit	String	Tax identification number
email	String	Contact email
__v	Int	Version number

Relationships:

• HightSchools → Courses (One-to-Many): Each school can have multiple courses

Courses

Stores information about courses offered by schools.

Field	Type	Description
_id	ObjectId	Primary key
id	String	Course identifier
name	String	Course name
hightSchool	String	Reference to school

Relationships:

• Courses → HightSchools (Many-to-One): Each course belongs to one school

Clients

Stores information about client organizations.

Field	Type	Description
_id	ObjectId	Primary key
name	String	Client name
nit	String	Tax identification number
epsCode	String	Health provider code
address	String	Physical address
phoneNumber	String	Contact number
email	String	Contact email
overdueInvoiceIds	ObjectId[]	Overdue invoice references
creditLimit	Number	Maximum credit allowed
transactions	ObjectId[]	Transaction references
avatar	String	Logo reference
isParticular	Boolean	Individual client flag
regime	String	Tax regime
serial	String	Unique identifier
isActive	Boolean	Client status
deleted	Boolean	Soft deletion flag
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
deletedAt	DateTime	Deletion timestamp
__v	Number	Version number

System Configuration

Configs

Stores system configuration settings.

Field	Type	Description
_id	ObjectId	Primary key
name	String	Configuration name
flag	Boolean	Toggle state
allowedUsers	String[]	Users with access
disallowedUsers	String[]	Users without access
createdBy	String	Creator reference
createdAt	DateTime	Creation timestamp
editedAt	DateTime	Last edit timestamp
editedBy	String	Last editor reference
isActive	Boolean	Configuration status
description	String	Configuration description
__v	Int	Version number

Feedbacks

Stores user feedback and feature requests.

Field	Type	Description
_id	ObjectId	Primary key
title	String	Feedback title
description	String	Feedback content
isFeature	Boolean	Feature request flag
isSupport	Boolean	Support request flag
serial	String	Unique identifier
isActive	Boolean	Feedback status
deleted	Boolean	Soft deletion flag
createdAt	DateTime	Creation timestamp
createdBy	String	Creator reference
deletedAt	DateTime	Deletion timestamp
__v	Int	Version number

Audit and Reporting

AuditLogs

Tracks user actions within the system for security and compliance.

Field	Type	Description
_id	ObjectId	Primary key
user	String	User reference
action	String	Action performed
entity	String	Affected entity
details	String	Action details
ip	String	User IP address
isActive	Boolean	Log status
deleted	Boolean	Soft deletion flag
timestamp	DateTime	Action timestamp
deletedAt	DateTime	Deletion timestamp
createdAt	DateTime	Creation timestamp
__v	Number	Version number

Relationships:

• AuditLogs → Users (Many-to-One): Each log entry is associated with one user

Reports

Stores generated reports and their download history.

Field	Type	Description
_id	ObjectId	Primary key
invoiceId	String	Related invoice reference
reportType	String	Report category
downloadHistory	ObjectId[]	Download record references
createdAt	DateTime	Creation timestamp
__v	Number	Version number

WeeklySchedules

Stores scheduling information for activities and participants.

Field	Type	Description
_id	ObjectId	Primary key
weekNumber	Number	Week number
year	Number	Year
days	ObjectId[]	Day references
participants	ObjectId[]	Participant references
__v	Number	Version number

File Storage

FsFiles

Stores metadata for files stored in the system.

Field	Type	Description
_id	ObjectId	Primary key
length	Int	File size in bytes
chunkSize	Int	GridFS chunk size
uploadDate	DateTime	Upload timestamp
filename	String	Original filename

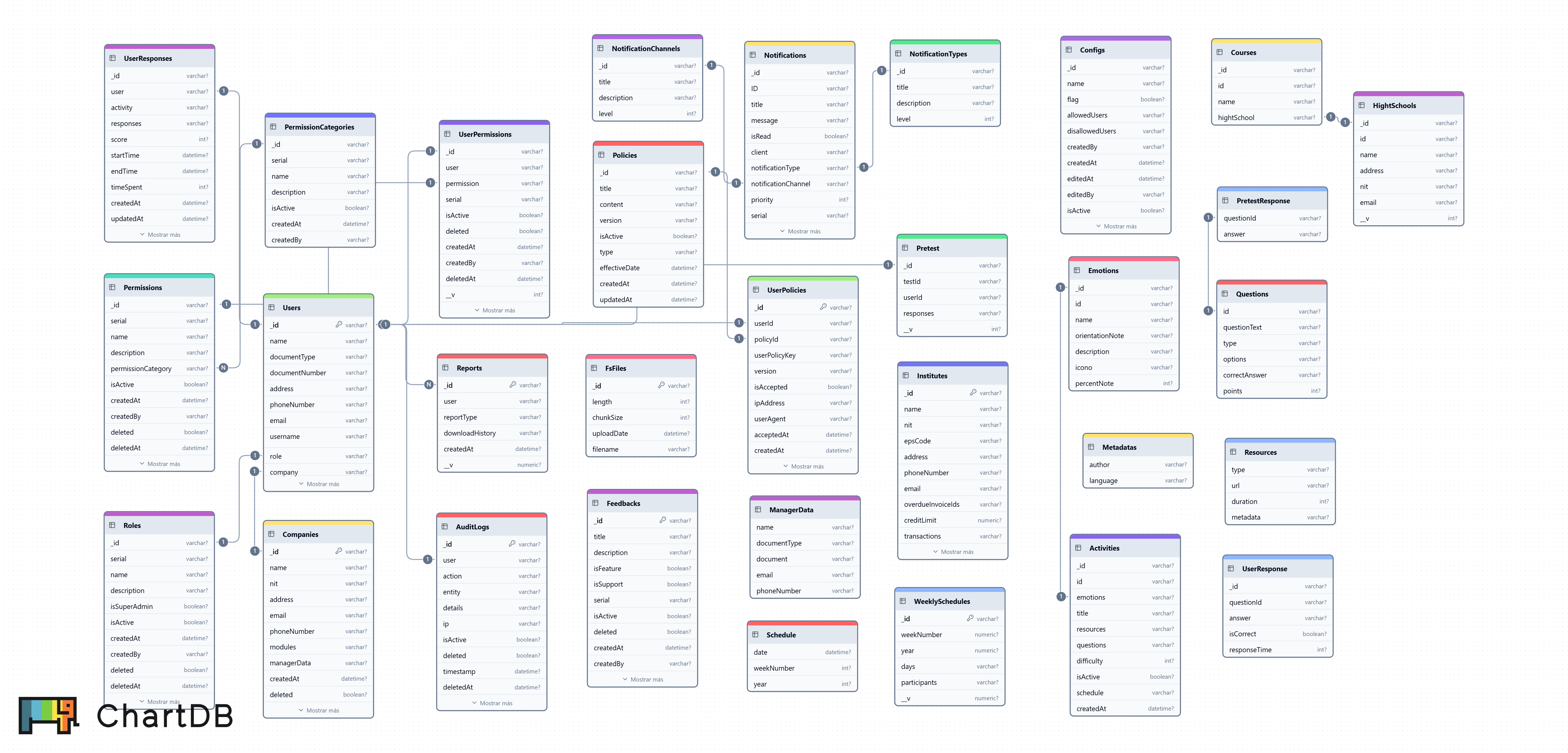

Database Relationships Diagram

graph TD
    Users --> Roles
    Users --> Companies
    UserPolicies --> Users
    UserPolicies --> Policies
    Activities --> Emotions
    UserResponses --> Users
    UserResponses --> Activities
    Pretest --> Users
    Notifications --> NotificationTypes
    Notifications --> NotificationChannels
    Permissions --> PermissionCategories
    UserPermissions --> Users
    UserPermissions --> Permissions
    Companies --> Users
    Courses --> HightSchools
    AuditLogs --> Users

Common Patterns

The database schema follows several common patterns:

1. Soft Deletion: Most collections include deleted and deletedAt fields to support soft deletion.

2. Audit Fields: Most collections include creation and modification timestamps and user references.

3. Versioning: Many collections include a __v field for optimistic concurrency control.

4. Embedded Documents: Complex data structures are represented as embedded documents (e.g., Resources within Activities).

5. Reference by ID: Relationships between collections are established using ObjectId references.

6. Status Flags: Most collections include an isActive field to indicate current status.

7. Serial Numbers: Many collections include a serial field as a human-readable unique identifier.
